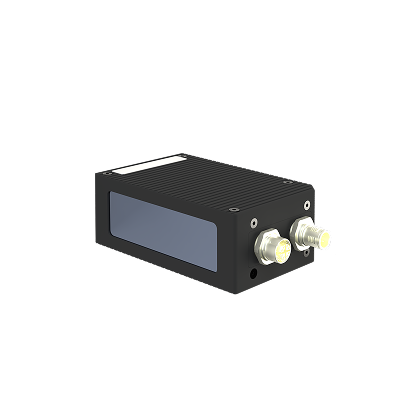

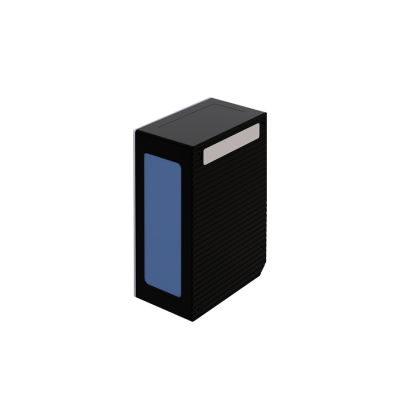

A 3D measurement camera capable of capturing cross-sectional profiles with extremely high speed and precision.

CoPick2.5D 100B

More Hardware Products

Spec


ItemSpecification
Resolution (points/scan)Up to 1.6M
Laser Wavelength
Blue (≈450 nm)
CommunicationInterface
M12, X-Coded, 8-pole, Female type
Speed1 Gbps Ethernet
PowerInterface
M12, A-Coded, 4-pole, Male type
Voltage / Current
24VDC / 0.3A
Connection Direction
Rear / Bottom (Optional)
Weight (kg) - Product / Package
0.45 / 0.94
Size (mm)
(W | D(Connector) | H)		Product
44 | 75 (90) | 110 (125)
Package
225 | 195 | 95


※ The product can be secured using for M6 bolts.

※ The direction of the connector cannot be modified after shipment.

FOV (Field of View)

Near
  • (W) : 72 mm
  • Working Distance : 95 mm
Focus
  • (W) : 98 mm
  • Working Distance : 145 mm
Far
  • (W) : 124 mm
  • Working Distance : 195mm

※ CoPick3D/CoPick2.5D is capable of capturing images across a range from Near to Far, and is designed to respond to the most diverse measurement environmental conditions (surface color, reflectivity, ambient lighting, etc.) at the Focus point. It delivers peak measurement performance and the highest precision around the Focus area.
