Spec
| Item | Specification | |
|---|---|---|
| Processing | 384 CUDA Cores | |
| Feature | Color Textured Point Cloud, Color Coded Point Cloud, Color Texture, Depth Map, Normal Map, Confidence Map | |
| Resolution (points/scan) | Up to 5M | |
| Structured Light Type | White (Standard), RGB Selectable | |
| Baseline (mm) | 250 | |
| Point-to-point Distance (mm) | Approx. 0.142 | |
| Calibration Accuracy (mm) | Up to ±0.1 | |
| Temporal Noise (mm) | ≤0.1 (typical, with averaging) | |

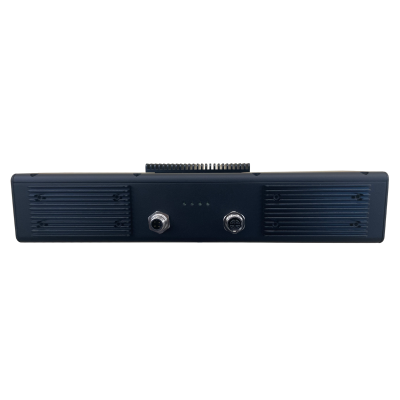

| Communication | Interface | M12, X-Coded, 8-pole, Female type |
| Speed | 1 Gbps Ethernet | |
| Power | Interface | M12, A-Coded, 4-pole, Male type |
| Voltage / Current | 24VDC / 3A | |
| Weight (kg) - Product / Package | 2.4 / 3.2 | |
| Size (mm) (W | D(Connector) | H) | Product | 335 | 130 (145) | 70 |
| Package | 385 | 195 | 95 | |
※ The product is secured with four 'M6 bolts'.
FOV (Field of View)
- Near
- (WxH) : 247 x 194 mm
- Working Distance : 350 mm
- Focus
- (WxH) : 347 x 242 mm
- Working Distance : 450 mm
- Far
- (WxH) : 418 x 340 mm
- Working Distance : 650 mm
