사양
Item | Specification | |
|---|---|---|
Processing | 384 CUDA Cores | |
Feature | Color Textured Point Cloud, Color Coded Point Cloud, Color Texture, Depth Map, Normal Map, Confidence Map | |
Resolution (points/scan) | Up to 5M | |
Structured Light Type | White (Standard), RGB Selectable | |
Baseline (mm) | 350 | |
Point-to-point Distance (mm) | Approx. 0.204 | |
Calibration Accuracy (mm) | Up to ±0.1 | |
Temporal Noise (mm) | ≤0.1 (typical, with averaging) | |
Communication | Interface | M12, X-Coded, 8-pole, Female type |
Speed | 1 Gbps Ethernet | |
Power | Interface | M12, A-Coded, 4-pole, Male type |
Voltage / Current | 24VDC / 3A | |
Weight (kg) - Product / Package | 2.7 / 3.8 | |
Size (mm) (W | D(Connector) | H) | Product | 435 | 130 (145) | 70 |
Package | 485 | 195 | 95 | |
※ 제품 고정은 'M6 볼트' 4개로 가능합니다.

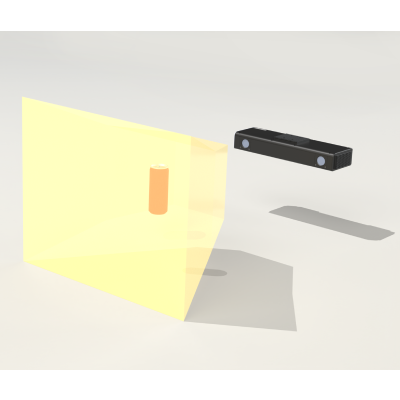

FOV (Field of View)
- Near
- (WxH) : 271 x 248 mm
- 작업 거리 : 450 mm
- Focus
- (WxH) : 499 x 348 mm
- 작업 거리 : 650 mm
- Far
- (WxH) : 652 x 562 mm
- 작업 거리 : 1,100 mm
