사양
| Item | Specification | |
|---|---|---|
| Processing | 384 CUDA Cores | |
| Feature | Color Textured Point Cloud, Color Coded Point Cloud, Color Texture, Depth Map, Normal Map, Confidence Map | |
| Resolution (points/scan) | Up to 5M | |
| Structured Light Type | White (Standard), RGB Selectable | |
| Baseline (mm) | 250 | |
| Point-to-point Distance (mm) | Approx. 0.133 | |
| Calibration Accuracy (mm) | Up to ±0.1 | |
| Temporal Noise (mm) | ≤0.1 (typical, with averaging) | |
| Communication | Interface | M12, X-Coded, 8-pole, Female type |
| Speed | 1 Gbps Ethernet | |
| Power | Interface | M12, A-Coded, 4-pole, Male type |
| Voltage / Current | 19V / 3A | |
| Weight (kg) - Product / Package | 3.2 / 6.3 | |
| Size (mm) (W | D(Connector) | H) | Product | 385 | 170 (185) | 95 |
| Package | 465 | 400 | 190 | |
※ 제품 고정은 'M6 볼트' 4개로 가능합니다.
※ 전용 어댑터를 제공합니다.

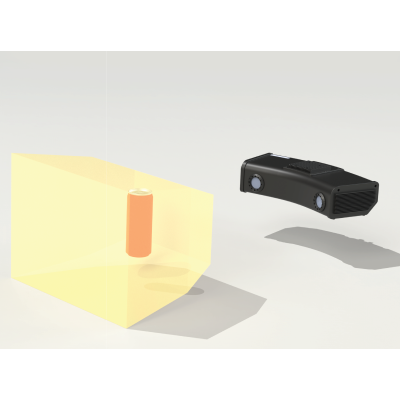

FOV (Field of View)
- Near
- (WxH) : 200 x 170 mm
- 작업 거리 : 350 mm
- Focus
- (WxH) : 325 x 249 mm
- 작업 거리 : 450 mm
- Far
- (WxH) : 436 x 321 mm
- 작업 거리 : 650 mm
